Wood Frame Saw

1. Ultra-High Precision and Tight Tolerances
The machine offers exceptional cutting precision, achieving a tolerance of ±0.1mm for heights up to 120mm and ±0.2mm for heights above 120mm. This level of accuracy is essential for high-end veneer production and engineered flooring, significantly reducing the need for subsequent sanding and minimizing material waste.

2. Exceptional Thin-Cutting Capability
Designed for maximum yield, this frame saw can produce a minimum product thickness of 2mm. This thin-cutting technology allows manufacturers to extract more usable slats from a single timber block, making it the ideal solution for producing high-quality top layers for multi-layer flooring and musical instrument components.

3. High-Efficiency Multi-Blade System

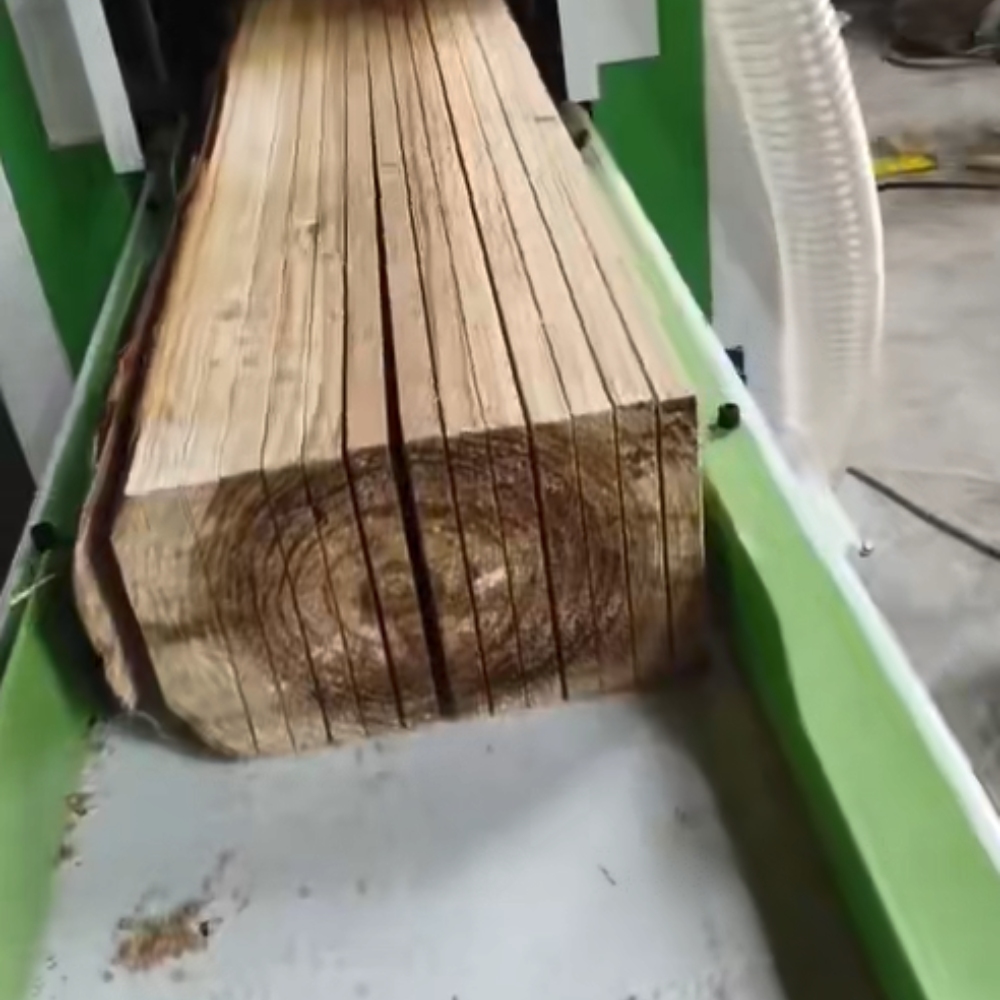

Equipped with a powerful 22KW main motor and a high-speed reciprocating frame performing 480 strokes per minute, the machine supports up to 25 saw blades simultaneously. This multi-blade configuration ensures massive throughput in a single pass, drastically increasing productivity compared to traditional band saws.

4. Versatile Processing & Flexible Feeding

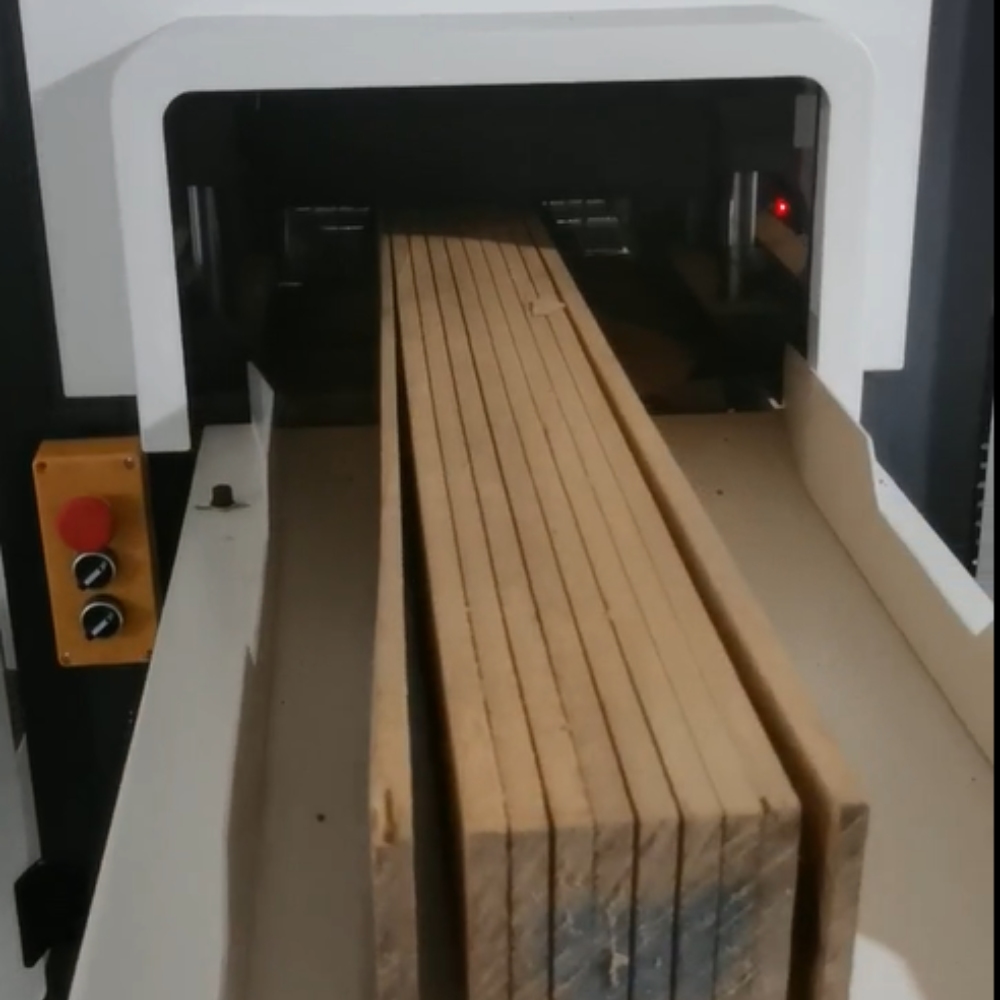

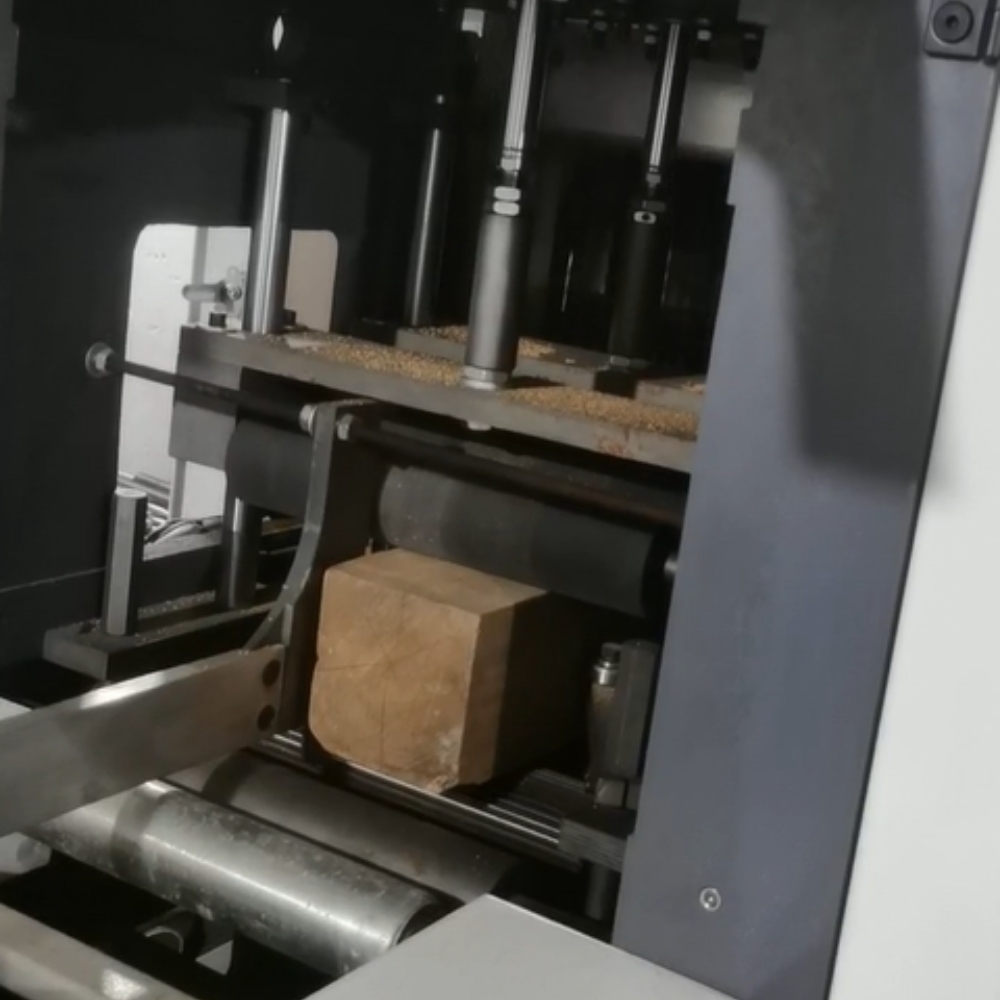

The machine features stepless adjustment for cutting heights (30-200mm) and supports both side and center guides. With its dual-channel feeding system (2 channels up to 150mm wide), it can process multiple timber blocks at once. The adjustable feed speed (0.1-1.5m/min) allows operators to optimize the cycle based on wood density and required finish quality.

5. Heavy-Duty Industrial Stability
Weighing in at 3300kg (3.3 tons), the robust and rigid construction of the machine frame absorbs vibrations during high-speed operation. This industrial-grade stability ensures consistent sawing accuracy over long production shifts and extends the lifespan of the saw blades, even when processing hard timbers.

6. Superior Dust Management & Operational Safety
To maintain a clean and safe working environment, the unit is equipped with three 120mm suction tubes, each delivering a performance of 1300 m³/h. This efficient dust extraction system prevents sawdust buildup on the blades and guides, reducing heat friction and ensuring the long-term reliability of the mechanical components.
