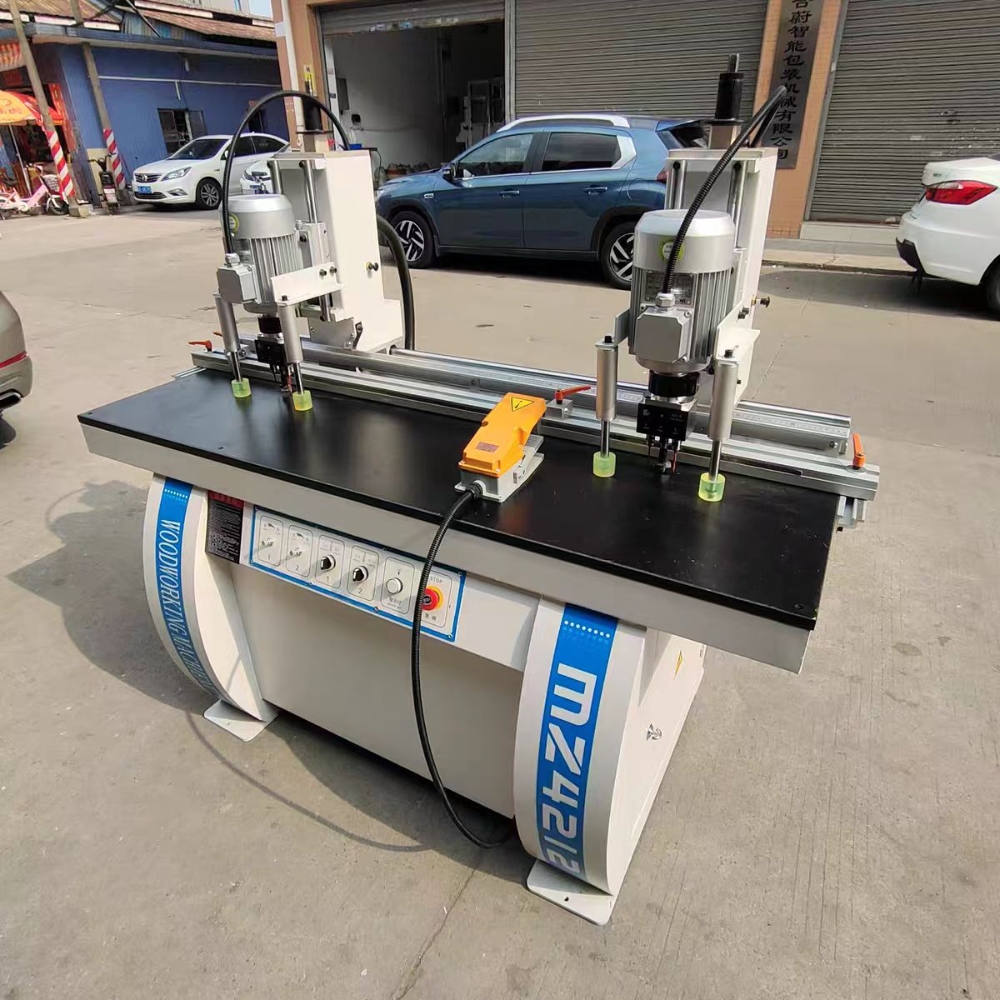

Pneumatic multi-spindle hinge drilling machine (2 heads)

1.High-Efficiency Dual-Head Design

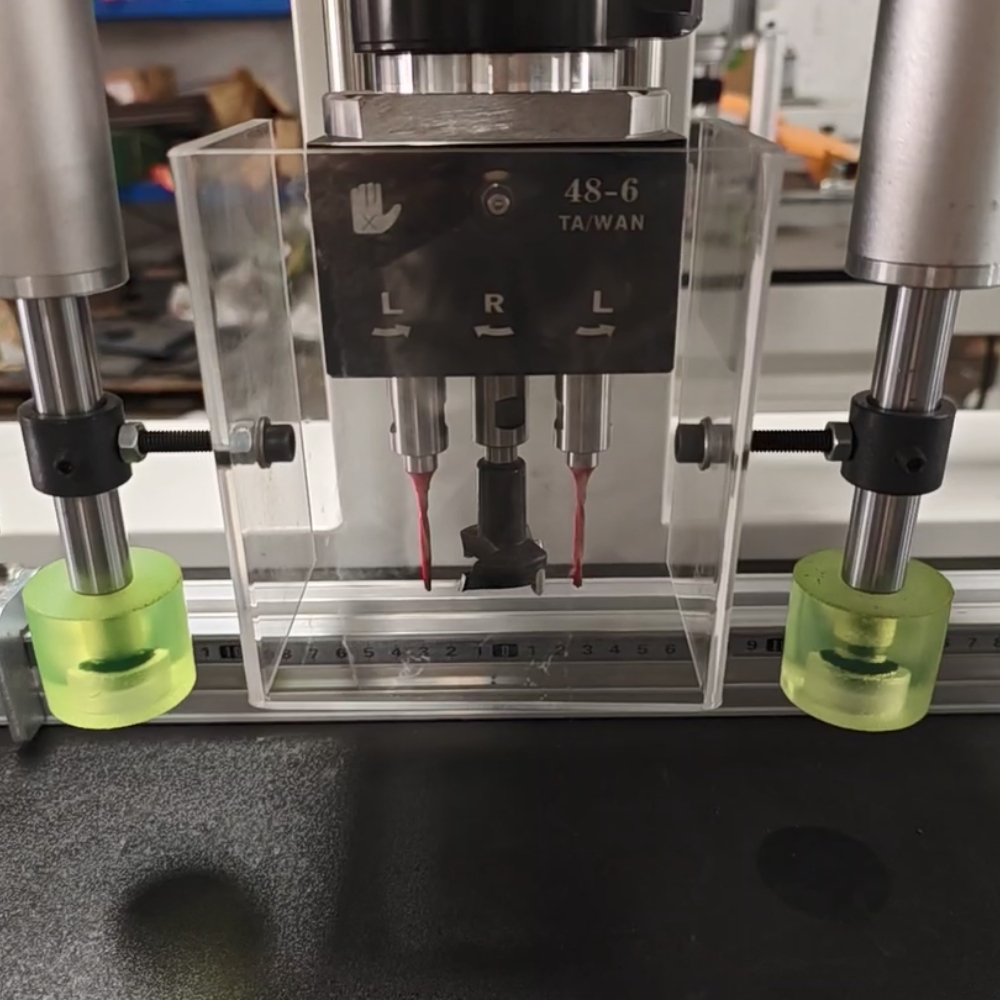

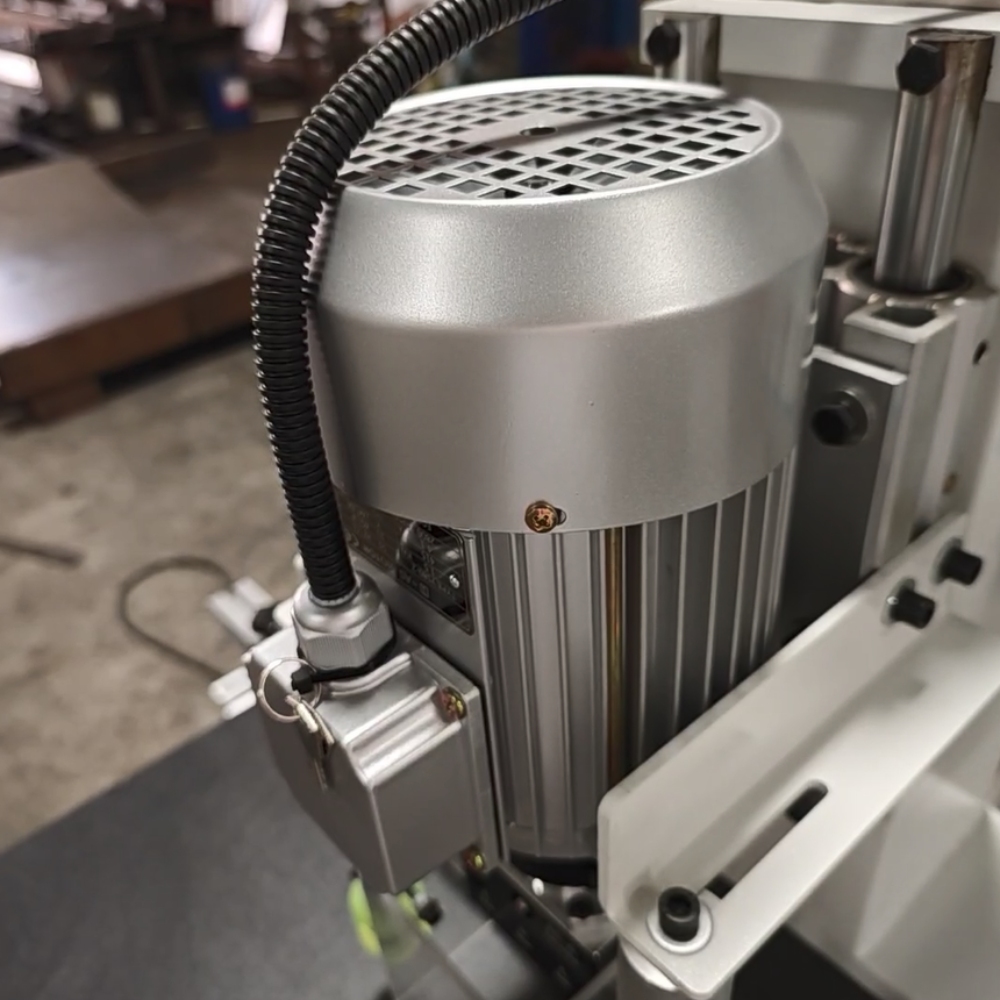

Equipped with 6 drill spindles (3×2 configuration) powered by dual 1.5kW motors
Enables simultaneous multi-hole drilling, significantly boosting production efficiency and reducing processing time

2. Extended Processing Capacity
Maximum processing length of 1420mm with minimum working length of 180mm
Accommodates a wide range of workpiece sizes, from small components to large furniture panels

3. Precision Drilling Performance
High spindle speed of 2840r/min ensures clean, accurate holes
Capable of drilling up to 35mm diameter and 60mm depth, suitable for various hinge types and hardware installations

4. Compact & Space-Efficient Design
Overall dimensions of 1700×800×1600mm with 300kg weight
Delivers industrial-level performance while maintaining a relatively small workshop footprint

5. Reliable Pneumatic Operation
Operates on 0.6-0.8Mpa air pressure system
Provides consistent drilling force, smooth operation, and enhanced control for professional results


This double-head hinge drilling machine combines power, precision, and efficiency in a compact design. With its 6-spindle configuration, extended processing range, and high-speed performance, it’s an ideal solution for furniture manufacturers and woodworking shops seeking to streamline hinge installation operations while maintaining professional quality standards.
