Multi-Rip Panel Saw (2440mm width & 12 rubbers)

1.High Power and Heavy-Duty Cutting Capacity
The spindle motor delivers 37kW of power at a stable operating speed of 2600 RPM. This high-power configuration ensures the machine maintains consistent performance when cutting high-density panels or thicker lumber, preventing slowdowns or material jamming. The power system is designed for future expansion, providing a clear upgrade path for increased production capacity.

2.Ultra-Wide Processing Range and High Adaptability
The maximum cutting width extends to 2440mm, fully accommodating standard large-format sheets. The cutting thickness range spans 3mm to 50mm, with a minimum workpiece length of 600mm. This broad parameter range reduces the need for pre-cutting operations, allowing a single machine to handle diverse specifications and batch sizes with flexibility.

3.Multi-Set Pressure Roller Feed System for Precision

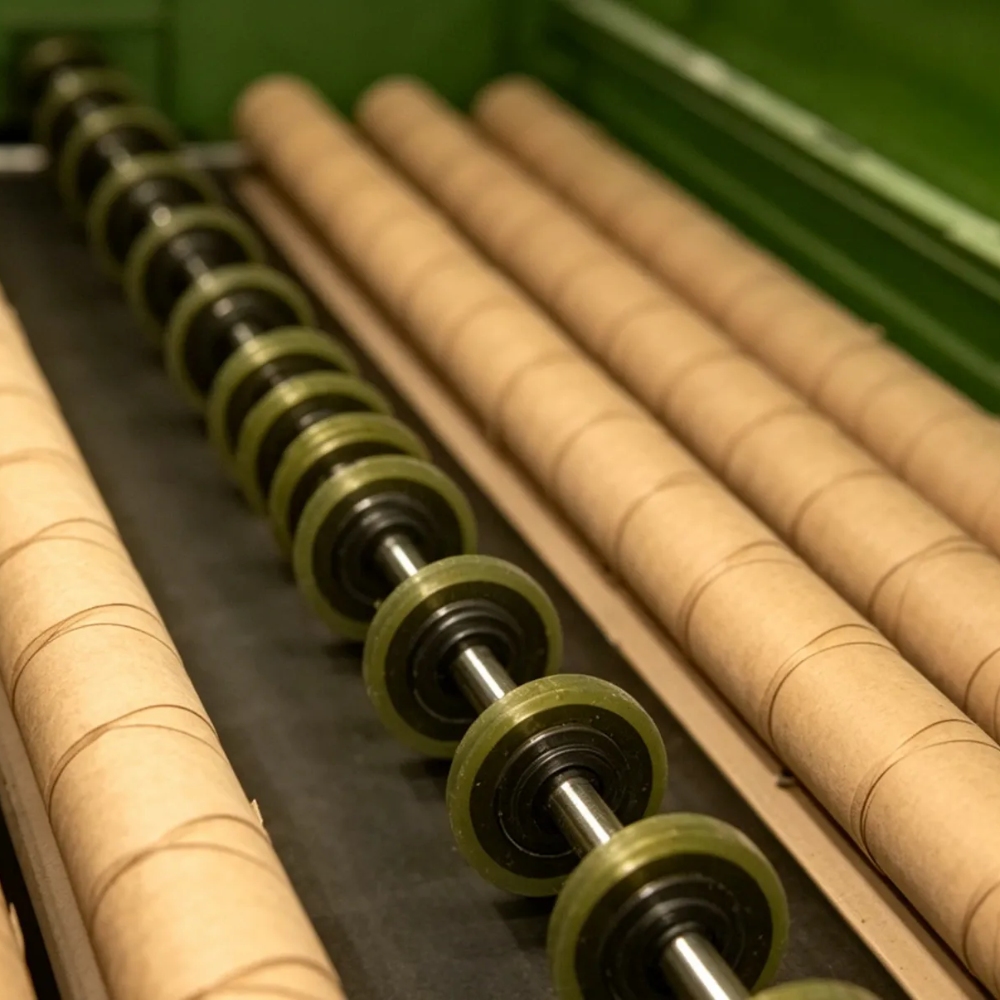

The feed system features 6 sets totaling 12 pressure rollers, driven by an independent 1.5kW motor. Compared to conventional designs with fewer rollers, this configuration distributes longitudinal pressure more evenly across the workpiece. This effectively prevents slippage, deviation, or vibration during high-speed conveying of wide panels, significantly improving cutting straightness and dimensional consistency.

4.Reinforced Spindle Structure and Flexible Blade Configuration
The spindle diameter is upgraded to 90mm, substantially enhancing structural rigidity during high-speed operation and reducing shaft deflection and vibration. The machine accepts both 205mm and 230mm blade diameters, with configurable installation of 10 to 30 blades. This flexibility enables quick adjustment of rip widths while maintaining operational stability across different production requirements.

5.Industrial-Grade Frame Design and Scalable Architecture
With overall dimensions of 2160 x 3000 x 1300mm, the machine is built on a heavy-duty welded frame engineered for continuous 24/7 industrial operation. Both the spindle motor at 37kW and feed motor at 1.5kW are marked as expandable, allowing manufacturers to scale power output as demand grows. This modular approach supports controlled initial investment while enabling smooth capacity upgrades as business needs evolve.
