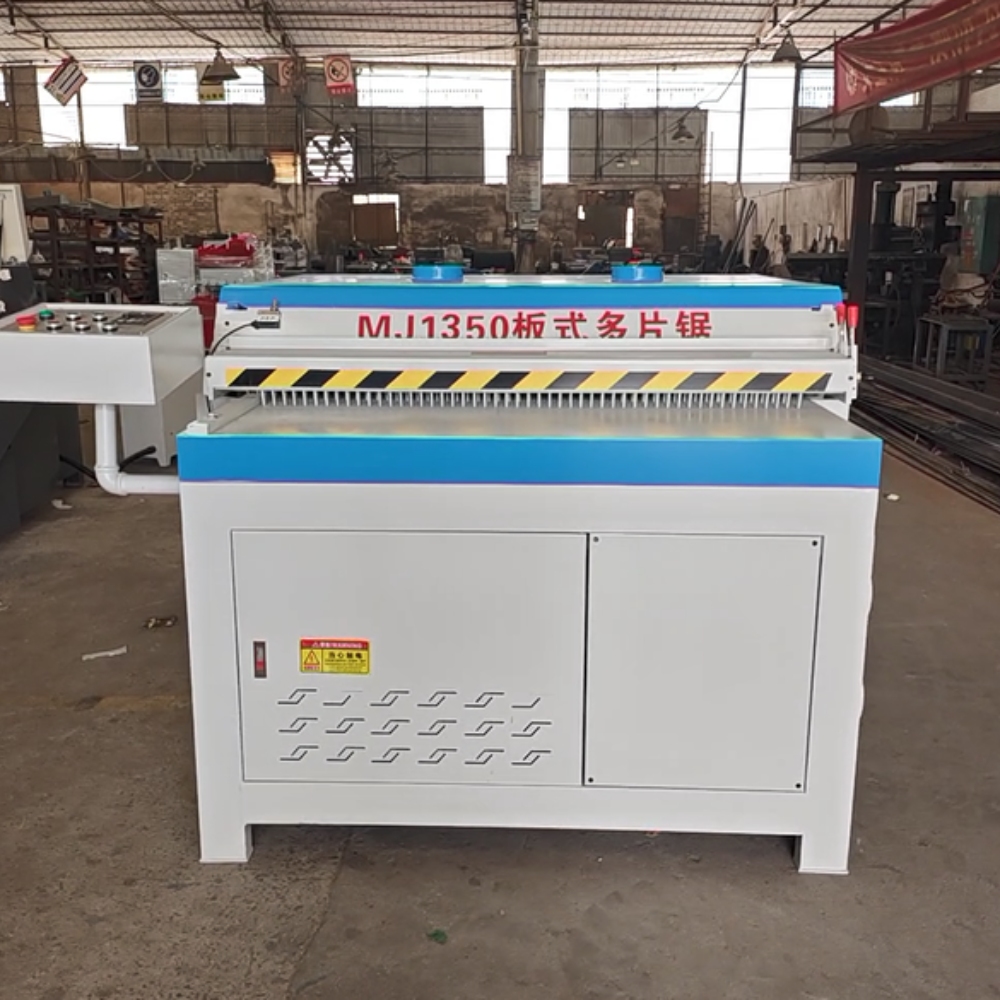

Multi-blade Panel Saw (1270mm width & 16 rubbers)

1.Extreme Multi-Rip Capacity (10-50 Blades)
Feature: The machine supports the installation of 10 to 50 saw blades simultaneously.
Advantage: This offers significantly higher production efficiency than standard models. It allows operators to slice a single board into up to 50 strips in one pass, making it ideal for high-volume mass production.

2. High-Power Heavy-Duty Performance
Feature: Equipped with a massive 37kw spindle power and 2.2kw feeding power.
Advantage: This substantial power output ensures the machine can cut through dense hardwoods, thick panels, or high-density materials without stalling or losing speed, maintaining consistent performance under heavy loads.

3. Enhanced Spindle Stability and Precision
Feature: Features a robust spindle diameter of ϕϕ 80/90mm.
Advantage: A thicker spindle provides greater rigidity and reduces vibration during high-speed rotation. This is critical when running up to 50 blades, ensuring straighter cuts, better surface finish, and extended blade life.

4. Superior Material Feeding and Grip

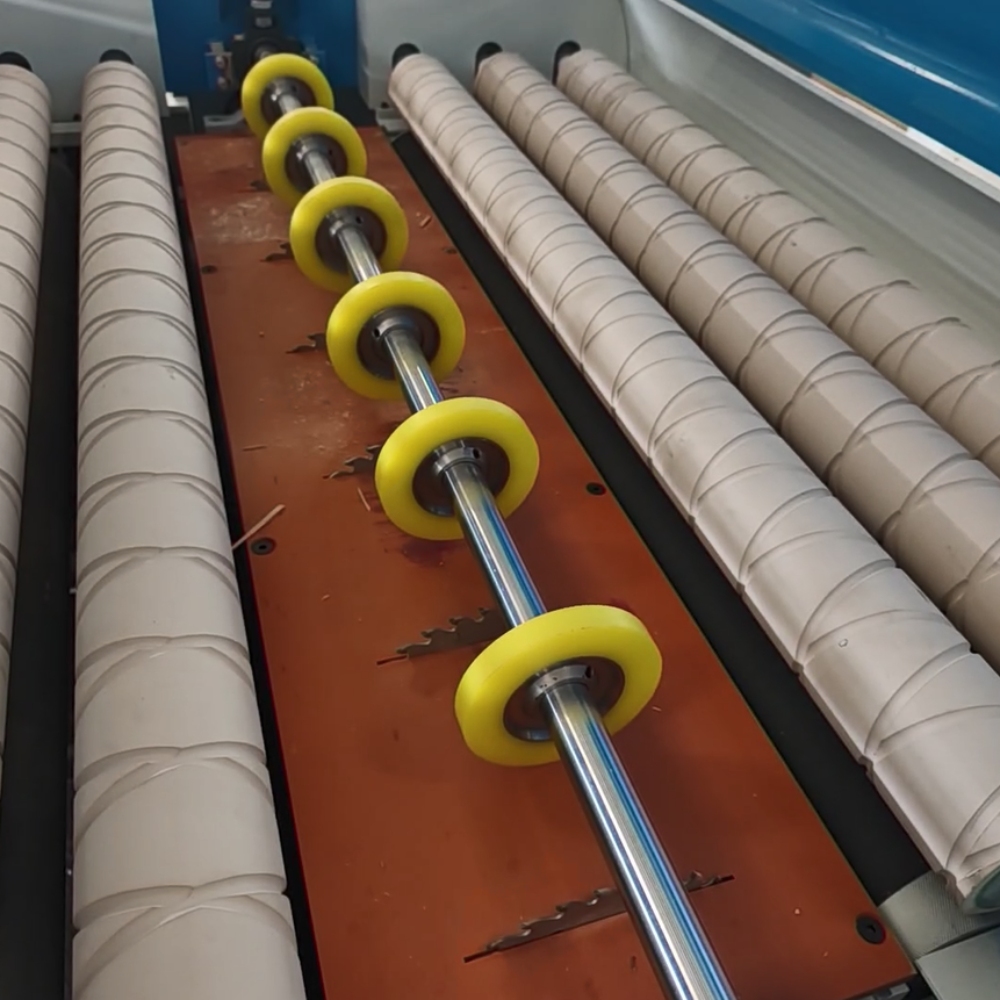

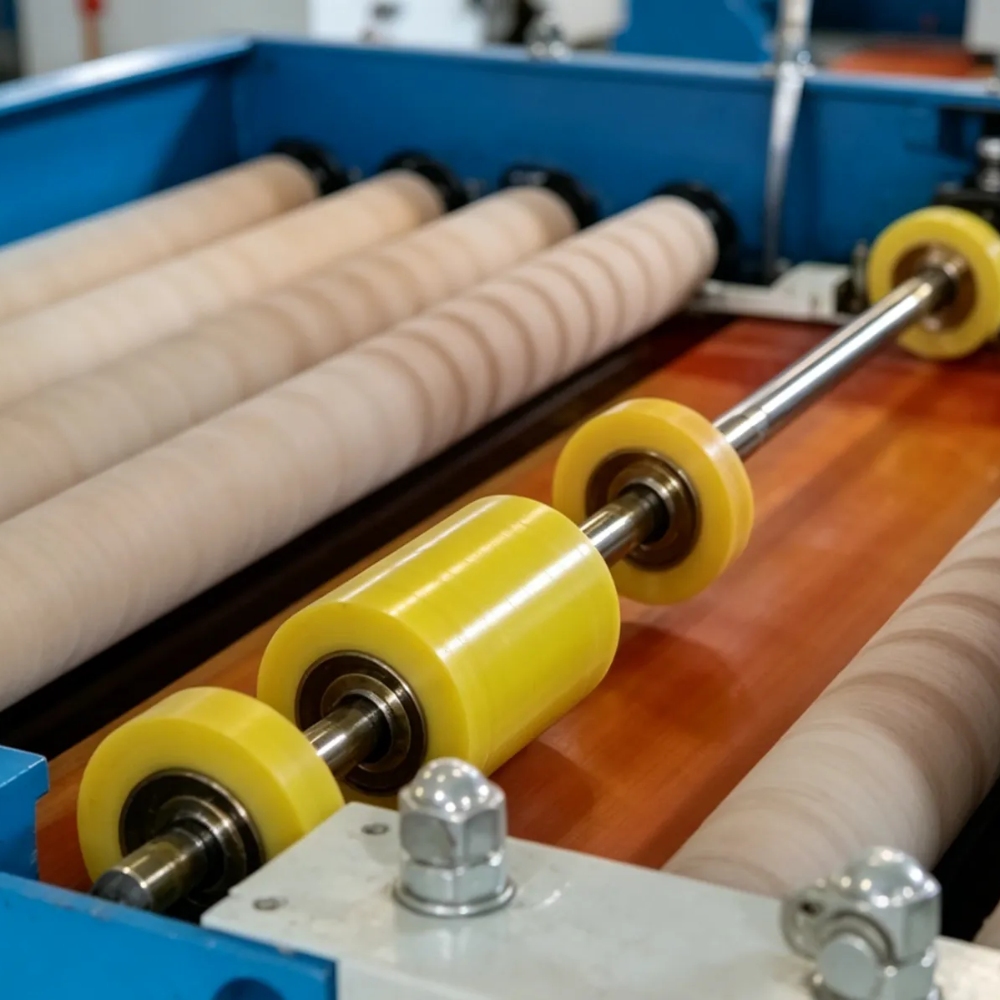

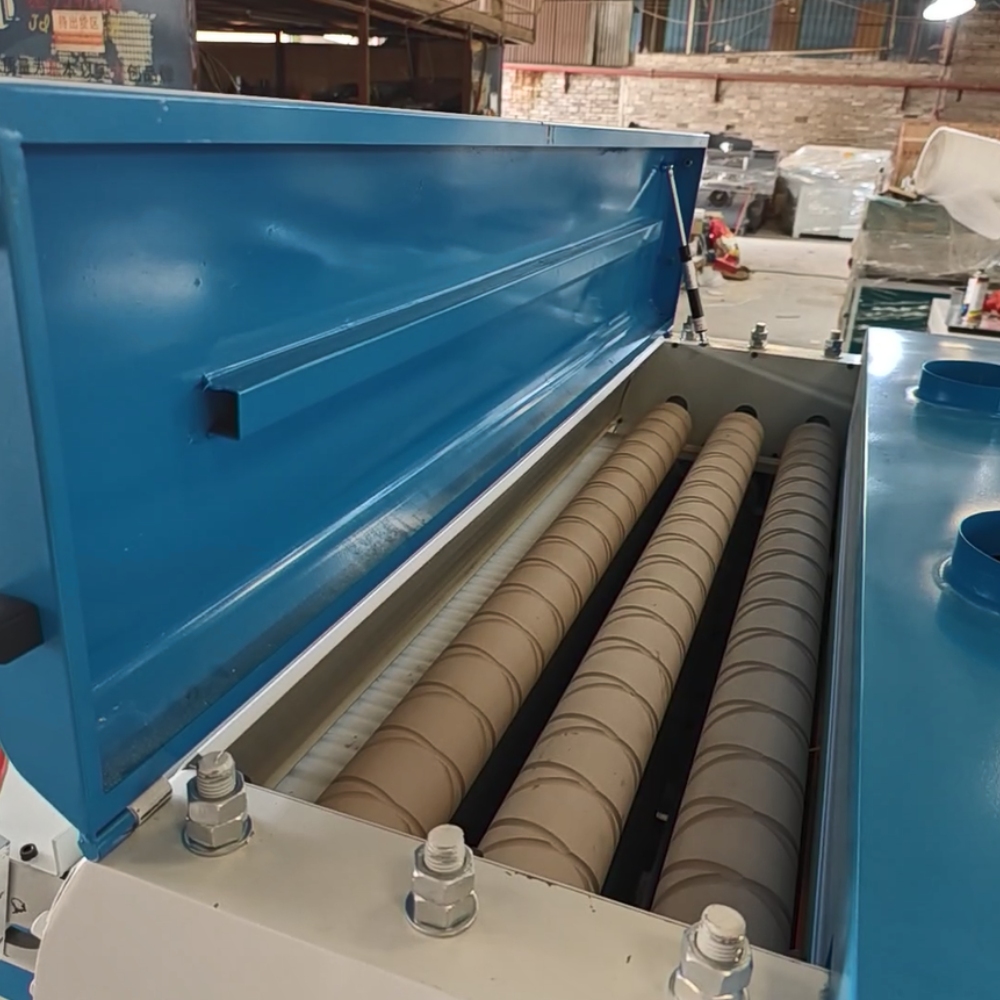

Feature: Utilizes 8 sets of feeding pressure rollers.
Advantage: Compared to smaller models (which often have 6 sets), the increased number of rollers provides a firmer grip on the material. This prevents slippage and ensures a smooth, uniform feed rate, which is essential for safety and accuracy when using high power.

5. Scalable and Customizable Power
Feature: The specifications note that both Spindle and Feeding power “(can be expanded)”.
Advantage: This offers flexibility for industrial users. If the factory needs to process harder materials or increase speed in the future, the machine’s power system can be upgraded to meet those specific demanding requirements.
