Manual Beam Saw

1.Massive Cutting Capacity for Large & Thick Panels: Features an impressive 3200mm maximum cutting length and a heavy-duty 90mm thickness capacity. Powered by a maximum φ380mm main saw blade, it effortlessly handles oversized, extra-thick, or stacked board materials that standard saws cannot process.

2.Highly Efficient Variable Speed & Rapid Return: Equipped with advanced 1.5kW inverter speed control, offering a smooth 0-60m/min cutting speed and a blazing-fast 100m/min rapid return. This significantly reduces idle travel time and maximizes daily production throughput.

3.Advanced Air Float Material Handling: Integrated with six sets of heavy-duty air float tables (three for front feeding, three for rear discharge) powered by a 2.2kW high-pressure fan. This creates a frictionless surface, protecting delicate panel finishes from scratches and making the loading of massive, heavy boards effortless.

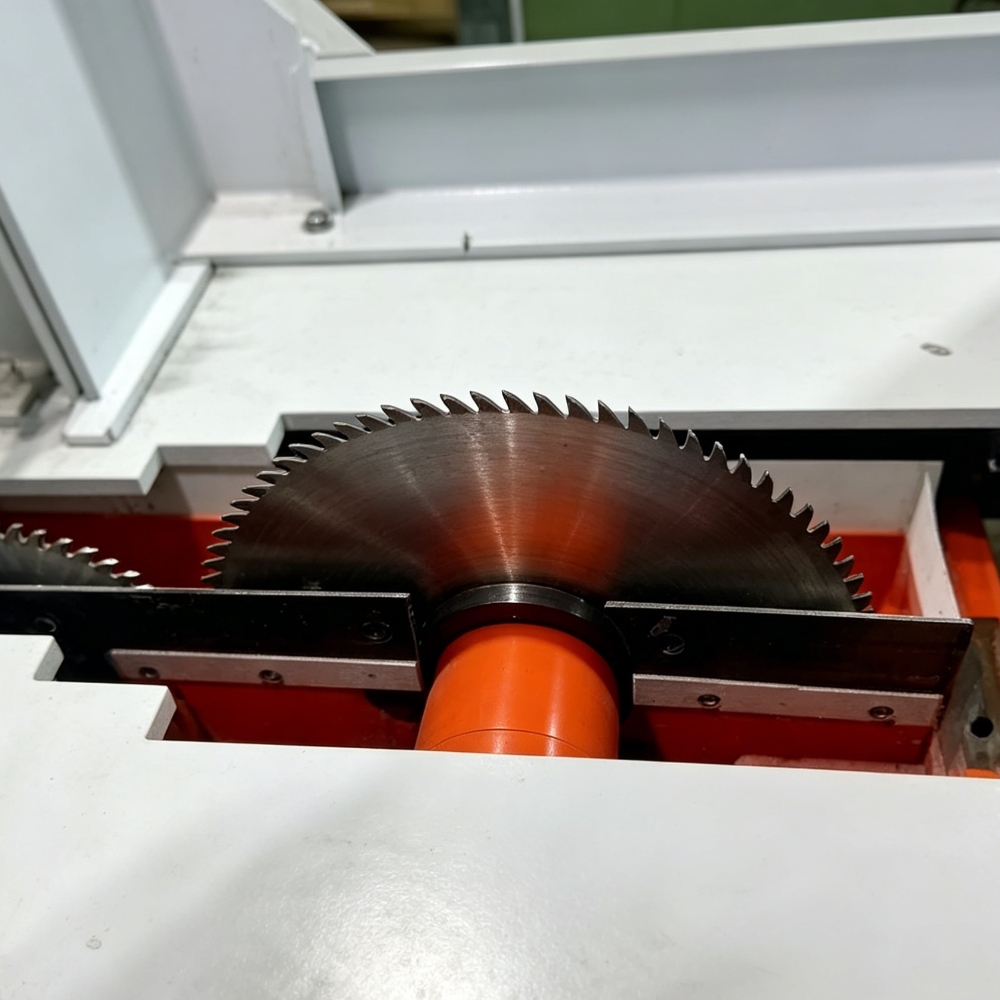

4.Flawless Precision & Chip-Free Finishes: Guarantees strict ±0.2mm cutting precision for perfect dimensional accuracy. The optimized combination of a 4100rpm main saw and a high-speed 6100rpm scoring saw ensures perfectly clean, splinter-free edges on double-sided laminated panels.

5.Industrial-Grade Power & Superior Dust Management: Driven by a robust 18.7kW total power system designed for continuous, heavy-duty industrial operation. It features 4 optimized dust extraction ports to ensure excellent chip removal, prolonging tool life and maintaining a clean, safe workshop environment.

Summary

This heavy-duty industrial panel sizing saw is specifically engineered for the high-volume processing of oversized and extra-thick panels. Combining a massive 3200mm cutting capacity, frictionless air-float material handling, and rapid inverter-driven speeds, it delivers uncompromising ±0.2mm precision and flawless edge quality. It is the ultimate high-throughput solution for large-scale furniture manufacturers seeking to maximize efficiency, protect delicate board surfaces, and handle the most demanding, large-format cutting tasks with absolute ease.
