Hinge and handle drilling machine for furniture production(4 heads)

1.High-Efficiency Multi-Spindle System
Equipped with 23 drill spindles (3×4+11 sets), this machine can drill multiple holes simultaneously, dramatically increasing production efficiency and ensuring precise hole positioning for hinges, handles, and other furniture hardware in a single operation.

2.Versatile Processing Capacity
With a maximum processing length of 2200mm and minimum working length of 180mm, the machine accommodates various panel sizes from small cabinet doors to large furniture components, offering exceptional flexibility for different production needs.

3.Robust Drilling Capability
Supports maximum borehole diameter of 35mm and depth of 60mm, making it suitable for drilling various types of hinges (including European concealed hinges), handles, locks, and other furniture hardware with precision and consistency.

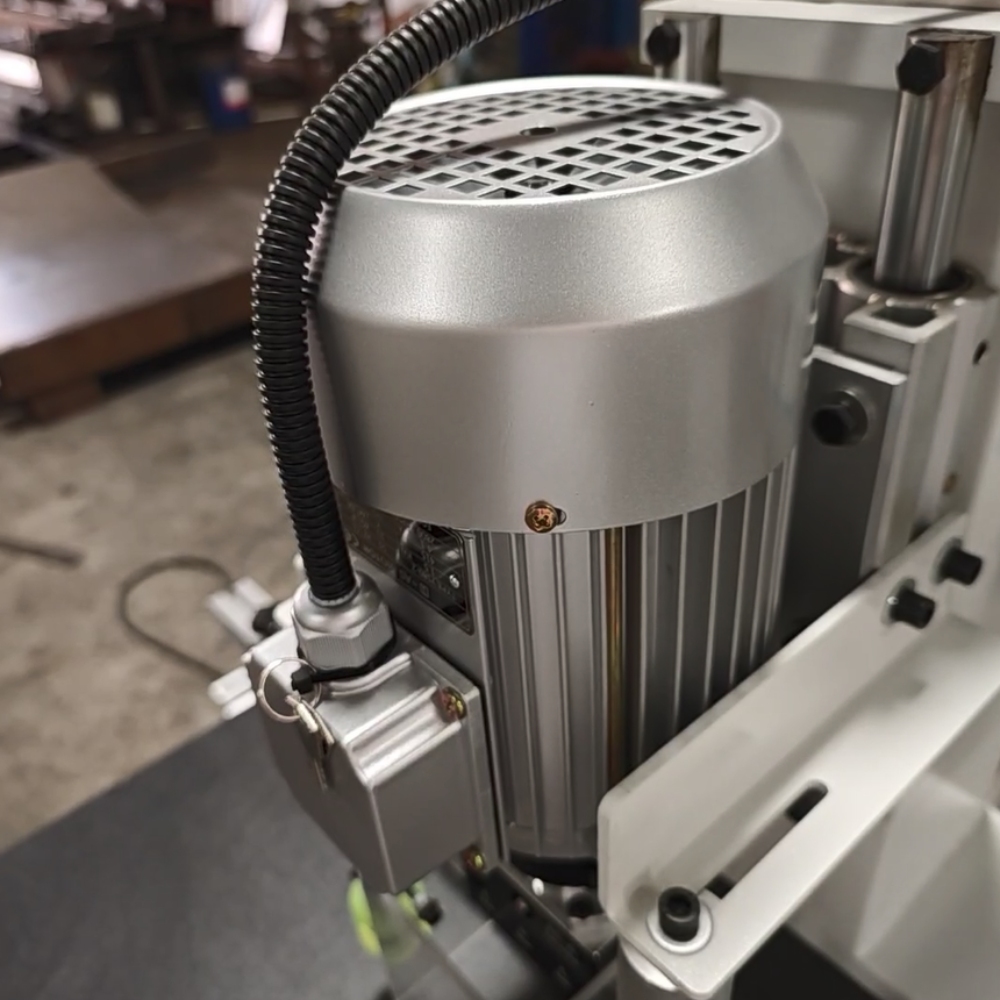

4.Powerful Multi-Motor Configuration
Features five 1.5kW motors (total 7.5kW) driving the spindle system at 2840r/min, ensuring consistent cutting power, smooth operation, and reliable performance during continuous production cycles.

5.Compact and Stable Design

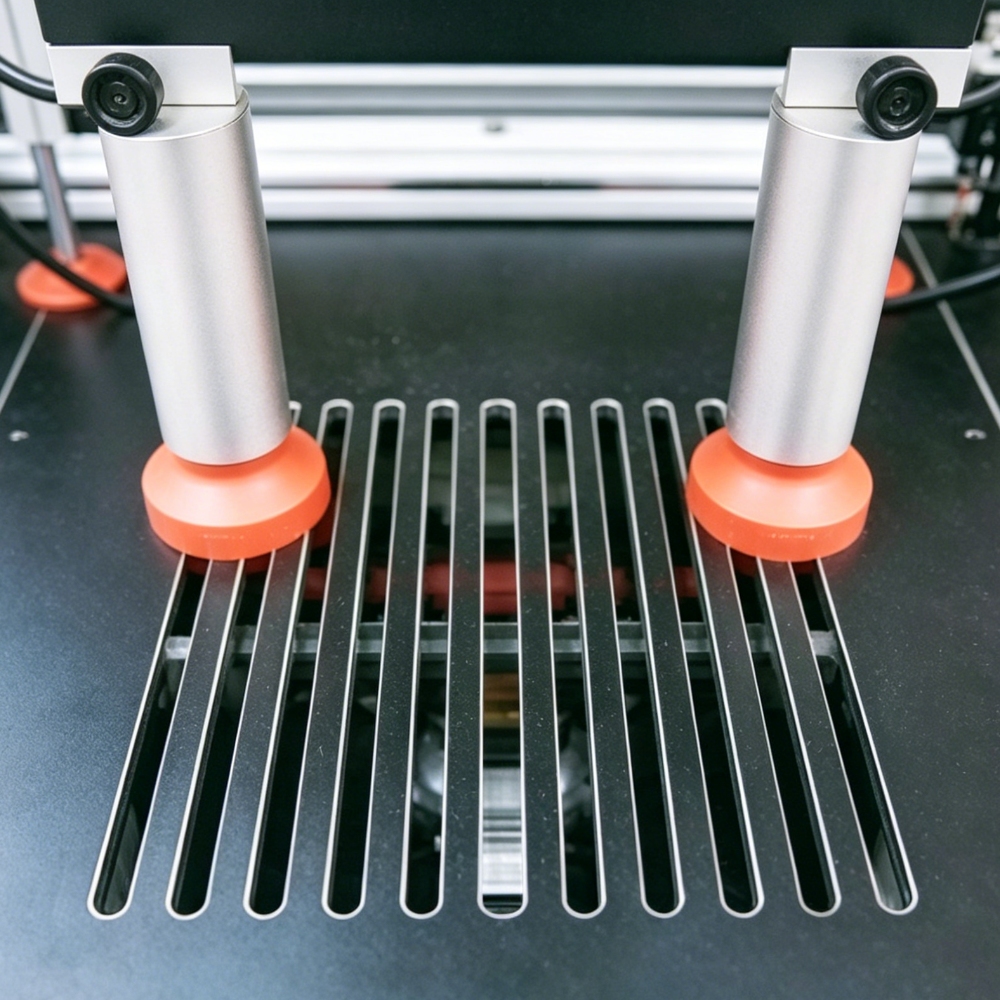

With overall dimensions of 2600×800×1600mm and weight of 700kg, the machine offers a space-efficient footprint while maintaining sufficient mass for stability. The pneumatic system (0.6-0.8MPa) ensures precise clamping and positioning.


This Hinge and Handle Drilling Machine is an integrated solution designed for efficient furniture hardware installation. The impressive 23-spindle configuration enables simultaneous drilling of multiple holes for hinges, handles, and locks, significantly reducing production time and labor costs. Its wide processing range (180-2200mm) and substantial drilling capacity (35mm diameter, 60mm depth) make it ideal for cabinet manufacturers, furniture producers, and woodworking shops requiring precise, repeatable hole patterns. The powerful 5-motor system combined with pneumatic operation ensures consistent accuracy and high throughput, while the compact 700kg design fits comfortably in standard workshop environments. This machine represents an excellent investment for businesses seeking to automate and streamline their furniture hardware drilling operations with professional-grade precision and efficiency.
